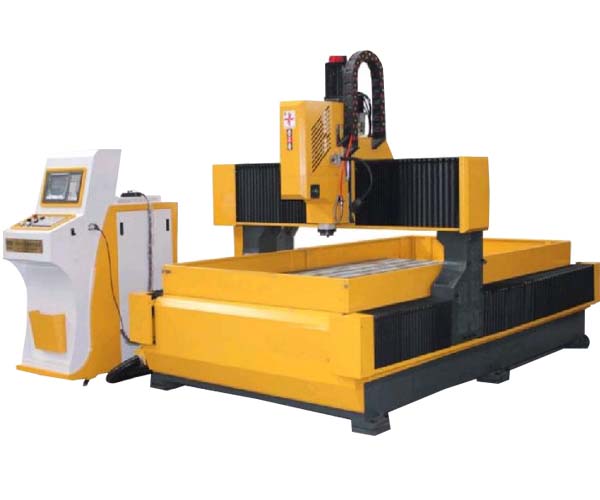

Cnc Plate Drilling Machine
Model
BFPL1616
BFPL2016
BFPL3016
BFPLTPHD4016
Max work piece size (L×W) (mm)
1600x1600 plate or Φ1600 flange
2000x1600 plate or Φ1600 flange
3000x1600 plate or Φ1600 flange
4000x1600 plate or Φ1600 flange
Thickness of work piece (mm)
Hydraulic clamps to 100; T-slot with tooling to 120
Drill unit type
sliding table, servo control
Drill head quantity
One or with ATC (automatic tooling changer-8 pics)
Max drill diameter (mm)
Φ40/Φ50
Taper hole of spindle
BT40/BT50
Spindle speed (r/min)
30～3000
Spindle vertical stoke (Z axis) (mm)
300
Servo motor power of X axis (kW)
2.0
Servo motor power of Y axis (kW)
1. 5
Servo motor power of Z axis (kW)
2.0
Motor power of scrap cleaner (kW)
0.75
Clamping type
12 Hydraulic clams and T-slot
Electric control type
SIEMENS CNC
Position precision (mm)
±0.08
With function of CAD/CAM automatic generation
With function of break point memory (Restart production easily after power off)
Overall size (m)
About 4.5x3.9x3.2
About 4.9x3.9x3.2
About 5.5x3.9x3.2
About 6.5x3.9x3.2
Weight (Kg)
About 11000
About 12000
About 13000
About 14500
