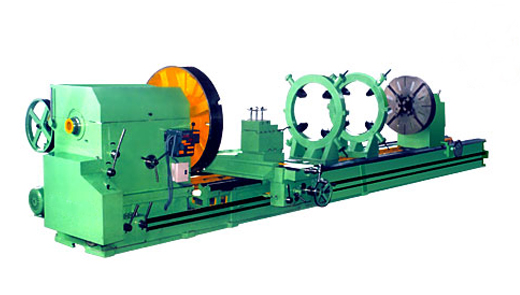

Lathe Machine

Technical Specification of Lathe Machine

MODEL	BFPL 16mm	BFPL 18 mm	BFPL 20 mm	BFPL 22 mm	JL 24 mm	BFPL 26 mm	BFPL 28 mm	BFPL 30 mm	BFPL 34 mm	BFPL 40 mm
Lenght of Bed	4900	5400	6000	6600	7200	7800	8500	9150	10400	12200
Width of Bed	650	650	650	650	750	7450	750	850	950	1050
Height of Centre	600	600	600	600	700	700	700	800	900	1000
Distance Between Centre	2850	3450	4050	4850	5050	5600	6200	6700	7800	9600
Spindle Hollow	105	105	105	105	105	105	105	105	105	105
Swing ove Saddle (Dia)	900	900	900	900	1100	1100	1250	1250	1450	1650
Swing Over Bed (Dia)	1200	1200	1200	1200	1400	1400	1400	1600	1800	2000
Swing Over Gap (Dia)	1700	1700	1700	1700	1900	1900	1900	2100	2300	2500
No. of Spindle Speeds	6	6	6	6	6	6	6	6	6	6
Type of Bed	P	L	A	N	E	R		T	Y	P
Lead Screw Dia	60	60	60	60	60	60	75	75	80	85
Lead Screw Pitch T.P.I.	2	2	2	2	2	2	2	2	2	2
H.P. Recommended	7.5	10	10	12.5	15	20	20	20	25	30

1. Specification of all geared machine can be had on request.
2. We can also supply machines as per customer's requirement.

Standard Accessories: One face plate, one coupling, one steady rest, one follow rest, two morse taper, Oil tray, Thread dial indicator and change gerar set.
Optional Accessories: Electric motor, starter, Electric coolant pump, 4-jaw indemendent chuck, 3-jaw self centering chuck. Gear to cut metric Threads, Taper turining attachment.
Note: Since the result of most modern research and development are being. Constantly applied to our machines, illustrations, constructional details and technical data given here can be changed for improvement.
