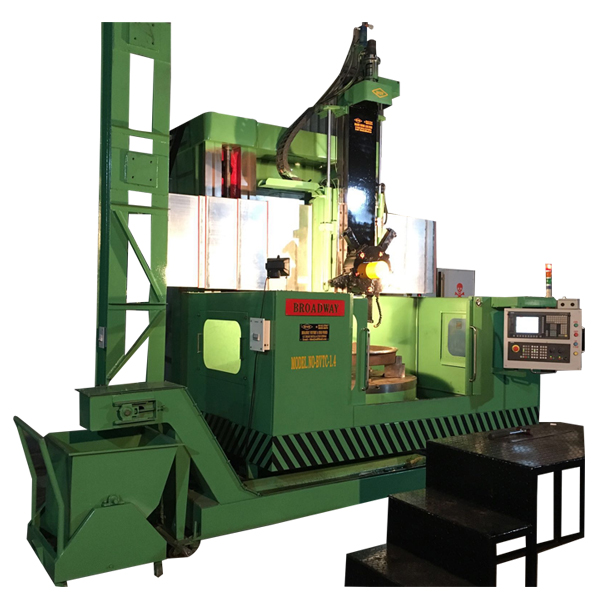

Cnc Vertical Turning Lathe Machine

BVTC series is the vertical lathe with double columns and determinate beam which is specially processed and developed for tyre mould, slewing bearing, tube-sheet of heat-exchanger, steamer impeller, and disc-type parts like flange plate. When processing the straight line, we can also process taper continuously without stopping the lathe and adjusting the knife rest, and any complex curve like circular arc. It is controlled by half closed-loop servo, the principal axis adopts stepless speed control of frequency conversion. An encoder is added onto the principal axis, which can cut thread, and cut with constant linear speed. Since determinate beam is adopted, the whole facade forms a steady and firm planer frame to ensure the complete stiffness of the machine tool, which has better cutting stability and precision than the common movable beam lathe.

Technical Specification of CNC VTL Machine

Descriptions BFPL-1 BFPL-1.2 BFPL-1.5 BFPL-2 BFPL-2.5 BFPL-3
Table Diameter (Manual Chuck) 1000 mm 1200 mm 1500 mm 2000 mm 2500 mm 3000 mm
Max. Turning Diameter 1200 mm 1300 mm 1700 mm 2200 mm 2700 mm 3200 mm
Max. Turning Height 600 mm 900 mm 1000 mm 1200 mm 1200 mm 1200 mm
Max. Work piece Weight 2500 kgs 4000 kgs 6000 kgs 8000 kgs 10000 kgs 12000 kgs
Range of Table Speeds 30-150 rpn 30--150 rpm 30-150 rpm 20-100 rpm 15-50 rpm 10-40 rpm
X Axis Rapid Rate 6 M / min 6 M / min 6 M / min 6 M / min 6 M / min 6 M / min
X Axis Horizontal Travel + 600 mm- 200 mm +750 mm -250 mm +950 mm - 250 mm +1150 mm -300mm + 1450 mm-300 mm +1650 mm-300 mm
Z Axis Rapid rate 6 M / min 6 M / min 6 M / min 6 M / min 6 M / min 6 M / min
Z Axis Horizontal Travel 500 mm 800 mm 800 mm 1000 mm 1000 mm 1000 mm
ELECTRIC MOTOR
Spindle Motor (HP) 15 HP 15 HP 25 HP 30 HP 40 HP 50 HP
