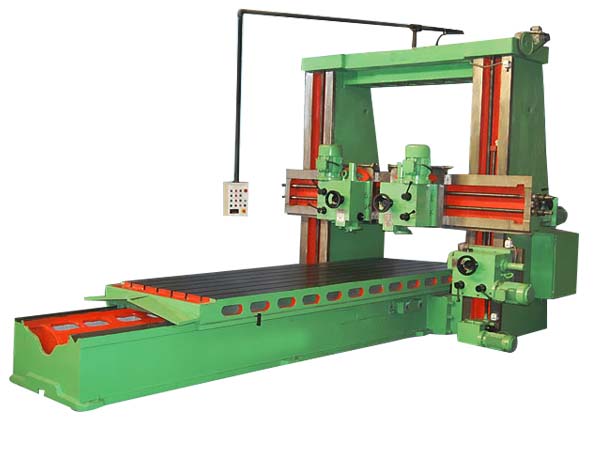

Plano Miller Machine

Technical Specification of Plano Miller Machine

Model No.	BFPL-120	BFPL-150	BFPL-180	BFPL-210	BFPL-250	BFPL-300
Length of Stroke	1800 to 15000 as per Order/requirement
Width between Columns	1200	1500	1800	2100	2500	3000
Height under Cross Rail	1200	1500	1500	1500	1500	1500
Face of Cross Rail	450	450	550	600	650	700
Face of Columns	325	325	450	500	500	500
Width of Table	875	1050	1200	1400	1500	1800
No. of Table Feeds	Stepless Infinitely Variable Speeds with AC Variable Frequency Drive
Table Feed for Milling per Minute	40 to 200
Table Repaid feed per minute	600

Driving Unit of Table available in Screwdrive & Gear Drive or Worm Drive
1. Specification of bigger size can be hand on request.
2. We also manufacture planning machines in belt driven as well as geared type.

Note: Since the result of most modern research and development are being. Constantly applied to our machines, illustrations, constructional details and technical data given here can be changed for improvement.
