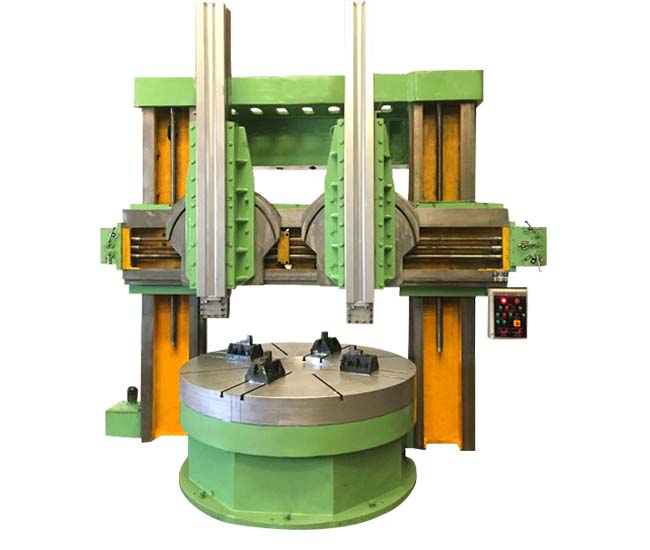

Vertical Turning Lathe Machine
Technical Specification of Vertical Turning Cum Boring Machine
| Model |
BFPL-1
|
BFPL-1.5
|
BFPL-2
|
BFPL-2.5
|
BFPL-3
|
BFPL-4
|
BFPL-5
|
|---|---|---|---|---|---|---|---|
| Max. Turning Diameter |
1100
|
1700
|
2200
|
2700
|
3200
|
4200
|
5200
|
| Table Diameter |
1000
|
1500
|
2000
|
2500
|
3000
|
4000
|
4500
|
| Max. Working Height |
600
|
1000
|
1200
|
1500
|
1600
|
1600
|
1600
|
| Max. Vertical Travel of Ram Head |
500
|
550
|
650
|
800
|
900
|
900
|
900
|
| Swivel Angle of Ram Head |
±30º
|
±30º
|
±30º
|
±30º
|
±30º
|
±30º
|
±30º
|
| Horizontal Travel of Side Ram Head |
250
|
300
|
400
|
500
|
5000
|
600
|
600
|
| Vertical Travel of Side Ram Head |
400
|
700
|
900
|
1200
|
1300
|
1300
|
1300
|
| No. of Table Speed |
Stepless Infintely Variable speeds with AC Variable Frequency Drive
|
||||||
| Range of Table Speed RPM |
6-60
|
4-40
|
3-30
|
2-20
|
1.5-15
|
1-10
|
0.7-7
|
| No. of Feeds Vertical/ Horizontal |
6
|
6
|
6
|
6
|
6
|
6
|
6
|
| Range of Feed Vert./Hor. (mm/min) |
3-12
|
1.5-8
|
1.5-6
|
0.5-6
|
0.5-5
|
0.5-5
|
0.5-5
|
| Rapid Traverse of Head (mm/min) |
500
|
500
|
500
|
500
|
500
|
500
|
500
|
| Main Motor H.P. |
7.5
|
10
|
15
|
20
|
25
|
40
|
50
|
| Ram Feed Gear Box Motor (H.P.) |
3
|
3
|
3
|
5
|
7.5
|
7.5
|
7.5
|
| Auto Lifting of Corss Rail Motor (HP) |
3
|
3
|
3
|
5
|
5
|
7.5
|
7.5
|
* Specifications of bigger sizes can supplied on request. Note: Since the results of most modern research and development are being constantly applied to our machines, illustrations, constructional details and technical data given here are not binding upon us.
