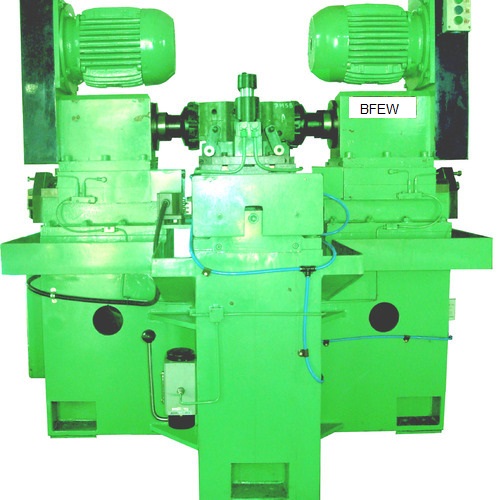

Duplex Milling Machine
Technical Specification of Duplex Milling Machine
Specifications
1BFPL-A
2BFPL-A
4BFPL-A
6BFPL-A
Working surface (LxW)(mmxmm)
Index table Φ350
1,350x400
2,000x500
2,250x600
Workpiece size
(mm)
20-300
100-500
220-800
400-1,000
Table (X)
(mm)
450
800
1,200
1,400
Spindle head (Y,Z)
(mm)
210 each
400 each
400 each
400 each
Distance from spindle center
to table top
(mm)
335(105)
405(150)
425(160)
475(160)
Distance from spindle nose
to table center
(mm)
90-300
110-510
170-570
250-650
Spindle nose
(JSB6101)
Special arbor
No.50
No.50
No.50
Speed
(min-1)
150-500
(Direct command
to inverter)
70-1,450
Speed change by pick-off gears& H/L changeover lever(min-1)
150-500(Direct commandto inverter)
(70,93,120,160,200,270,380,500,650,840,1100,1450)
Spindle motor
(ｋｗ)
5.5
5.5
7.5
7.5
Distance between spindles
(mm)
180-600
220-1,020
340-1,140
500-1,300
Cutting feed
(mm/min)
0-2,000
10-3,000(with cutting feed override: 0 - 150%)
Rapid feed(X)
(mm/min)
10,000
6,000
6.000
6.000
Rapid feed (Y,Z)
(mm/min)
10,000
4,800
4,800
4,800
Feed (X,Y,Z)
(kw)
0.6 each
2.8 each
2.8 each
2.8 each
Hydraulic pump (optional)
(kw)
1.5
2.2
2.2
2.2
Lubrication pump
(w)
20
202020
2020
20
Power consumption
(KVA)
20
25
30
30
Loading capacity
(kgf)
90
800
1,500
2,000
Machine weight
(kgf)
5,500
8,000
9500
11000
Floor space
(mmxmm)
2,380x3,176
2,760x3,360
4,020x3,500
4,340x3,680
